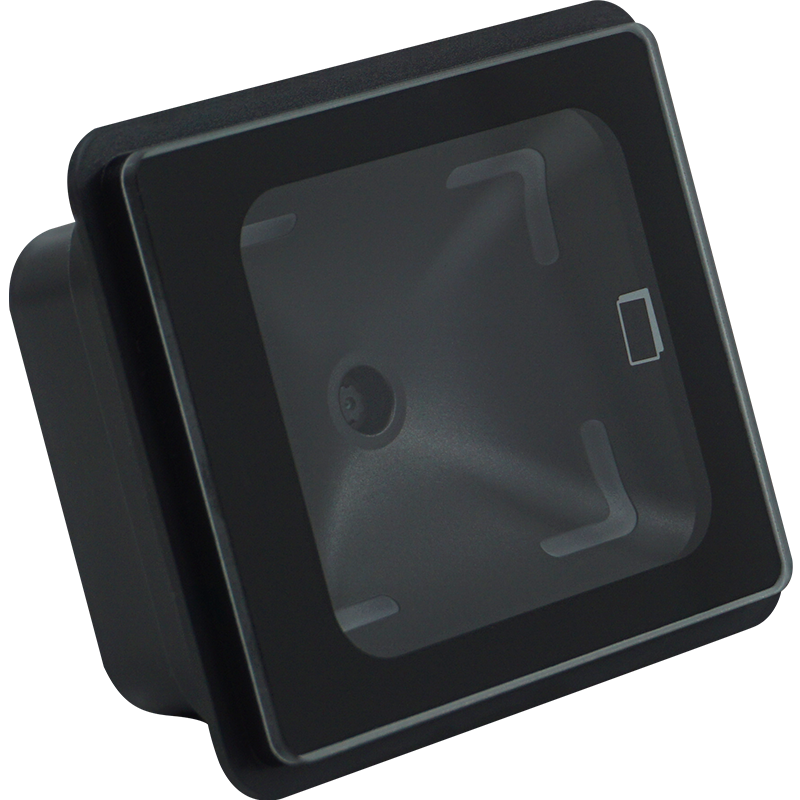

Embedded QR Code Scanner
Self-developed image-decoding core supports fast reading of all 1D / QR code symbologies; flat tempered-glass panel, borderless design, only 28.35mm thick.
What it is
Overview
Q300 是酷豆专为嵌入式领域研发的一款扫码设备，将二维码识读与射频卡读取合二为一，可同时满足扫码与刷卡两类应用需求。 设备支持 USB、韦根、TTL、RS232、RS485 五种输出方式，具备良好的集成灵活性，便于嵌入到各类自助终端、通道闸机及门禁系统中。 手册强调其识读速度快、精度高（最快 0.1 秒），并配套人性化的 VguangConfig 配置工具，使现场调试更加便捷。
Highlights
扫码 / 刷卡二合一
集成二维码识读与 13.56MHz 射频卡读取，可同时覆盖支付与门禁场景。
高速识读
识读速度最快可达 0.1 秒，平均 100ms/次，支持连续读取。
多接口输出
支持 USB、RS232、RS485、TTL、韦根多种通信方式，适配不同主机与上位机。
人性化配置
通过 VguangConfig 生成配置码，扫码即完成参数下发，断电重启生效。
宽环境适应
工作温度 -20°C~65°C，环境照度 0–100000Lux（非阳光直射），相对湿度 5%–95%。
状态指示
红光 / 绿光 / 白光指示灯 + 蜂鸣器，直观反馈识读与刷卡状态。
Specifications
Other Parameters
Interface and Communication
Electrical Parameters
Environmental Parameters
产品详解与选型指南
Product Overview
The embedded QR-code scanner is a smart device launched by CoolCode for IoT access-control passage scenarios. With its self-developed image-decoding core it reads all 1D / QR code symbologies quickly; it features a flat tempered-glass panel, borderless design and is only 28.35mm thick.
The Q300 is a code-scanning device developed by CoolCode for the embedded field, combining QR-code reading and RFID card reading to meet both scan and swipe application needs. It supports five output modes - USB, Wiegand, TTL, RS232 and RS485 - with great integration flexibility, making it easy to embed into various self-service terminals, lane turnstiles and access-control systems. The manual highlights its fast, accurate reading (as fast as 0.1s) and the bundled user-friendly VguangConfig tool that makes on-site debugging more convenient.
Core Capabilities
Scan / Swipe in One
Integrates QR-code reading and 13.56MHz RFID card reading to cover both payment and access-control scenarios at once.
High-Speed Reading
Read speed as fast as 0.1s, averaging 100ms per scan, and supports continuous reading.
Multi-Interface Output
Supports multiple communication modes - USB, RS232, RS485, TTL and Wiegand - to suit different hosts and upper computers.
User-Friendly Configuration
Generate a config code via VguangConfig and scan it to push parameters; settings take effect after power-off restart.
Wide Environment Adaptability
Operating temperature -20C~65C, ambient illuminance 0-100000Lux (no direct sunlight), relative humidity 5%-95%.
Status Indicator
Red / green / white indicators + buzzer give intuitive feedback on scan and swipe status.
Key Specifications
Supported Interfaces: USB, RS232, RS485, TTL, Wiegand (multiple selectable)
Indicators: red, green, white lights; buzzer
Image Sensor: 0.3MP CMOS sensor
Max Resolution: 640x480
Mounting: embedded
Product Size: 75mm x 65mm x 28.35mm
Use Cases
Embedded QR-code scanners are commonly used in self-service ticket machines, parcel lockers, turnstile embedding and health-code verification, balancing high-concurrency and high-security passage and control needs.
Why Choose CoolCode
Backed by its in-house machine-vision and edge-cloud collaborative architecture, CoolCode products hold CE / FCC / ISO 9001 / RoHS category-level certifications, are exported to 100+ countries and regions, and power scaled deployments in metro, campuses, government-enterprise and education.
Selection & Buying Guide
We recommend selecting based on the installation environment (indoor / semi-outdoor), recognition modality and concurrency, and contacting CoolCode for project quotes and integration support.
What it solves
Use Cases
Certifications
FAQ
How much does the embedded QR-code scanner cost?
CoolCode prices its embedded QR-code scanner per project; the exact price depends on model configuration, order quantity and deployment scale. Use the buttons below to contact CoolCode for an official quote, solution design and sample support.
What scenarios is the embedded QR-code scanner suitable for?
Embedded QR-code scanners are commonly used in self-service ticket machines, parcel lockers, turnstile embedding and health-code verification, balancing high-concurrency and high-security passage and control needs.
What recognition modes does the embedded QR-code scanner support?
The embedded QR-code scanner provides scan / swipe in one, high-speed reading, multi-interface output and user-friendly configuration. It can flexibly combine face / QR code / IC card / NFC multimodal reading so a single device covers many scenarios.
What are the key specs of the embedded QR-code scanner?
Typical specs: supported interfaces - USB, RS232, RS485, TTL, Wiegand (multiple selectable); indicators - red, green, white lights and buzzer; image sensor - 0.3MP CMOS sensor. Refer to the model datasheet for the full list.
How is the embedded QR-code scanner deployed and integrated with a platform?
The device runs online or offline, syncing permissions and access logs to the CoolCode cloud platform in real time; it provides Wiegand / RS485 / RS232 / RJ45 / relay interfaces and an open API for straightforward integration with third-party access, turnstile and one-card systems.
