Preface
Thank you for using the Q340 scanner. Reading this document carefully will help you understand the device functions and features, and quickly master its use and installation.
Product Introduction The Q340 is a scanner developed for embedded use, with USB, Wiegand, TTL, RS232 and RS485 outputs, IP67 waterproof, suitable for turnstiles, kiosks and outdoor use.
Product Features 1, Scan + card combined. 2, Fast and accurate, up to 0.1s. 3, Easy configuration. 4, IP67 waterproof.
Product Appearance

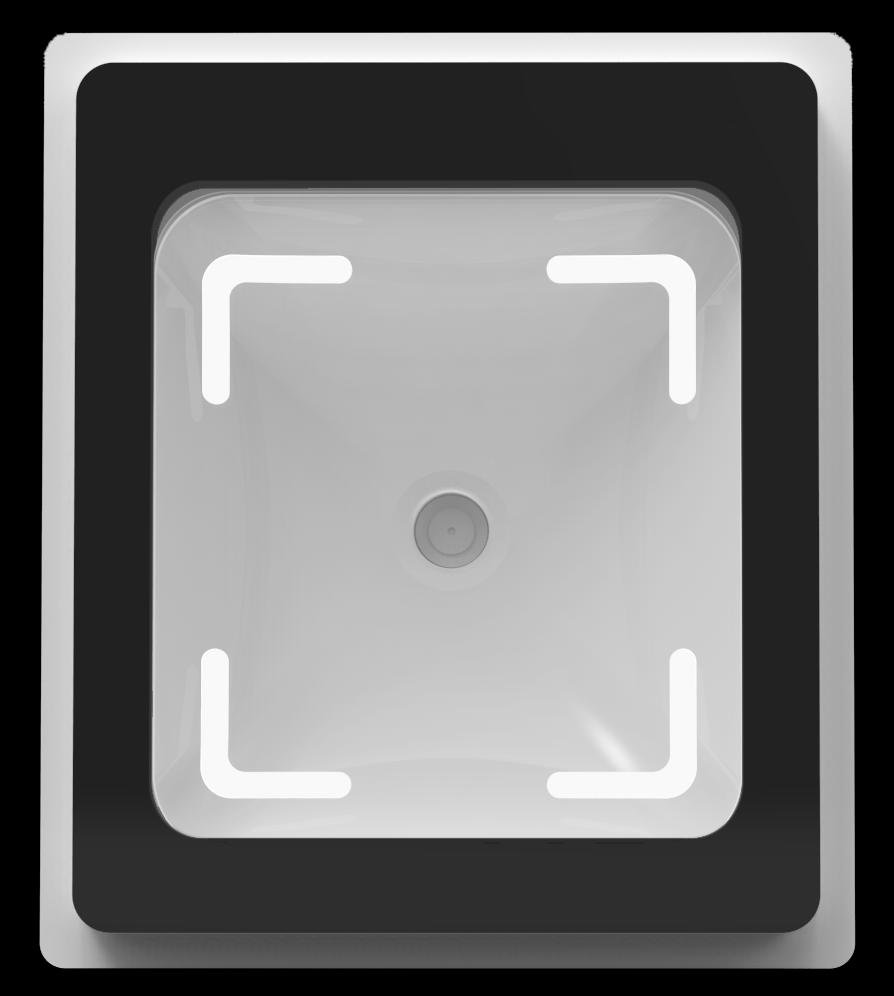

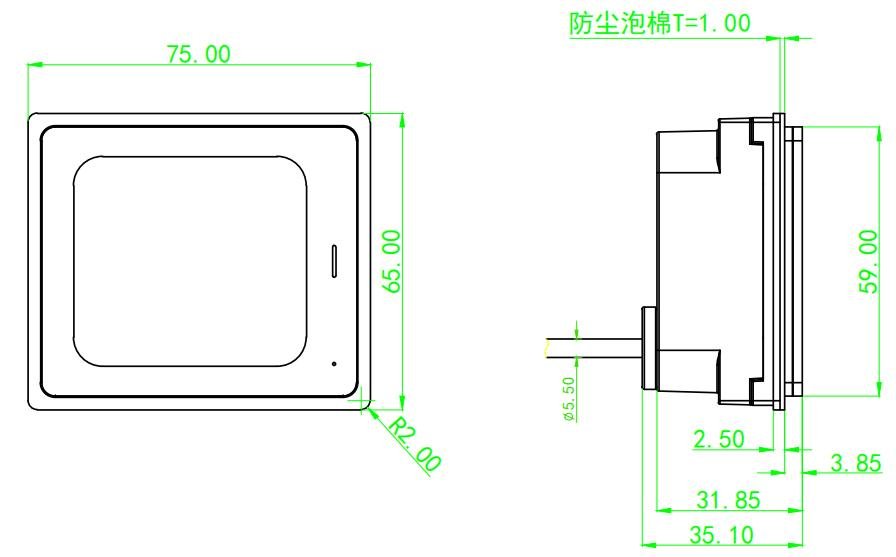

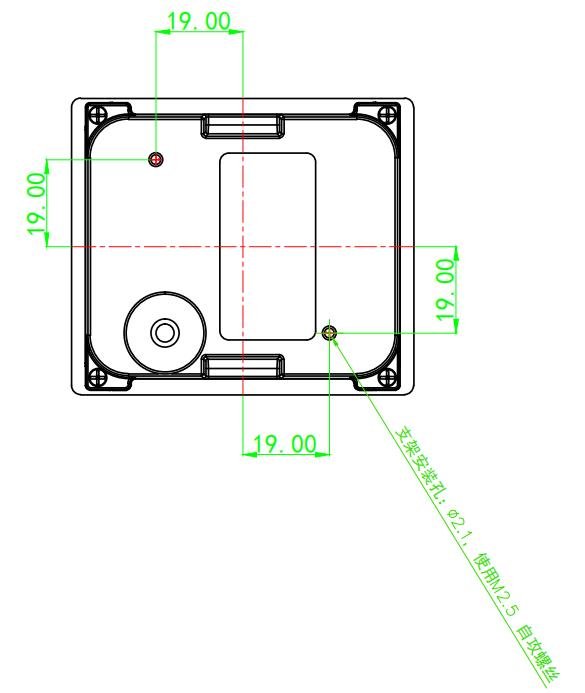

Overview: scan LED, fill light, read area, power LED. Dimension (mm).
Specifications
General: USB/RS485/TTL/Wiegand; red/green/white LED, buzzer; 0.3MP CMOS; 640×480; embedded; 75×65×35.10mm; window 51×46mm. Reading: QR, PDF417, CODE, ISBN, ITF, EAN, DATABAR, Aztec etc.; screen/paper; depth 0–78.8mm (15mil); ≥8mil; 100ms avg; tilt ±42.4°/rotate ±360°/skew ±42.4°; FOV H67.2°/V52.6°/D80.4°. RFID: ISO 14443A/B, ID, UID/M1; 13.56MHz; <5cm. Electrical: DC 5–24V; 280mA (5V typ.); 1400mW. Environment: ESD ±8kV air/±4kV contact; -20 to 65°C; 0–100000Lux.
Device Configuration

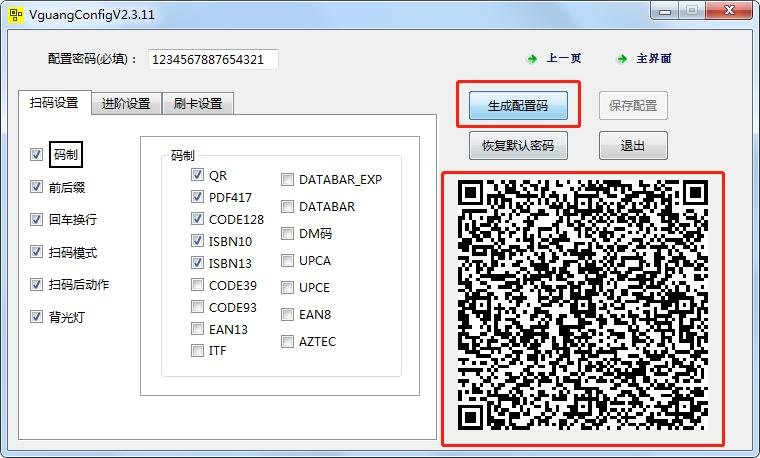

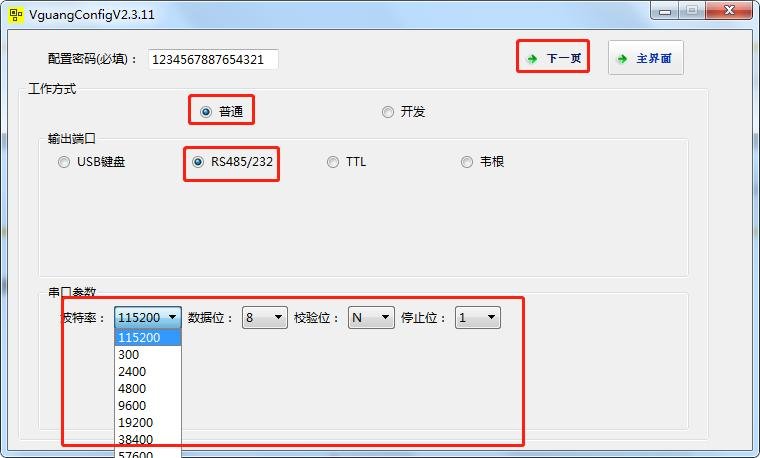

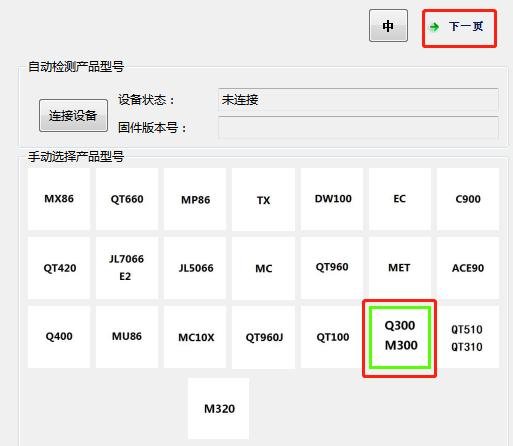

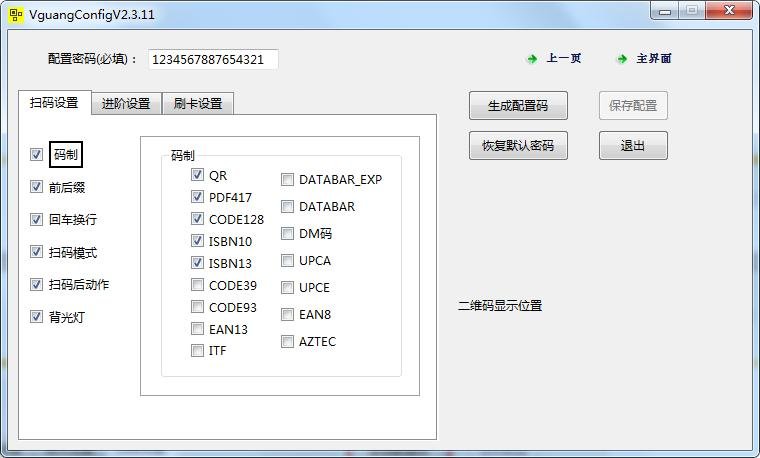

Use the configuration tool; select Q300; output/serial params; options; generate config code; scan; power-cycle.
Common Config Codes
Work-mode; output-mode; CR/LF; 232/485 baud; TTL baud.
Installation

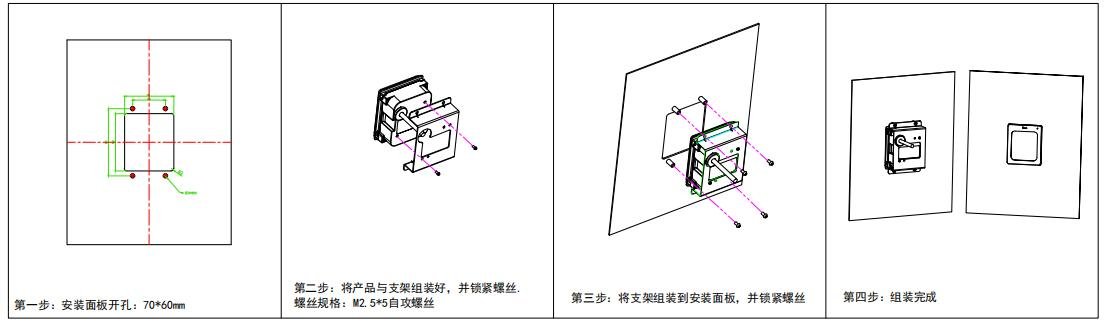

Avoid strong light; tempered glass; keep metal 10cm from RFID antenna.
Precautions
1, 5–24V power. 2, No disassembly. 3, Avoid strong light; clean window; metal disturbs NFC. 4, Firm, insulated wiring.
Contact
Video Tutorials
Q340 产品演示
Watch videoFAQ
How can I get the latest firmware for this product?
Firmware and upgrade packages require submitting your company information for approval; once approved, a download link will be sent. You can also upgrade online from the device backend.
The manual does not match the actual device?
Always refer to the device nameplate label and the latest version of the manual. If you have questions, contact Koodle technical support for assistance.
