Thank you for using the MU86 scanner. Reading this document carefully will help you understand the device functions and features, and quickly master its use and installation.

Product Introduction The MU86 is a scanner developed for access control, with Wiegand and 485 outputs (direct to traditional controllers) and Ethernet output with a built-in relay to control doors directly.

Product Features 1, Scan + card combined. 2, Fast and accurate, up to 0.1s. 3, Easy configuration. 4, Built-in relay.

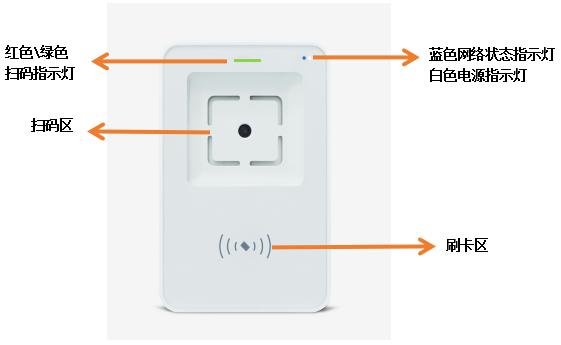

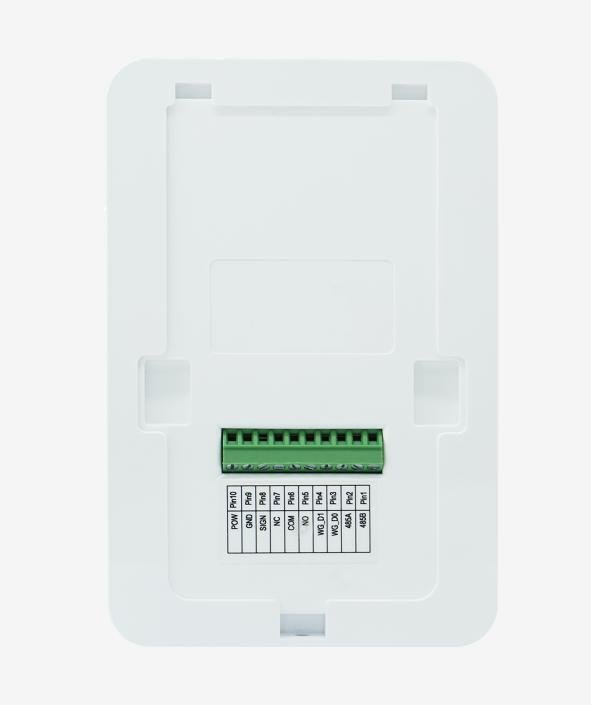

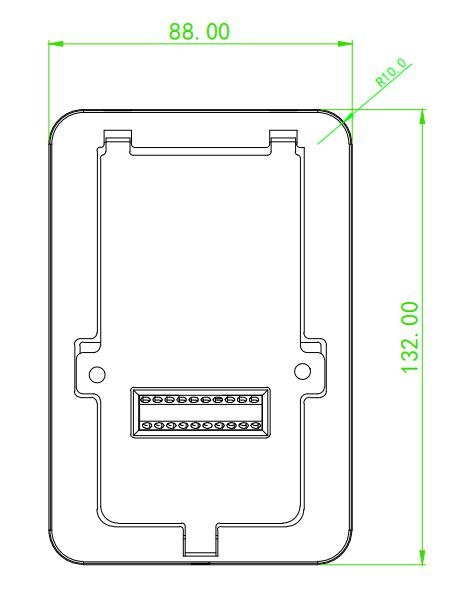

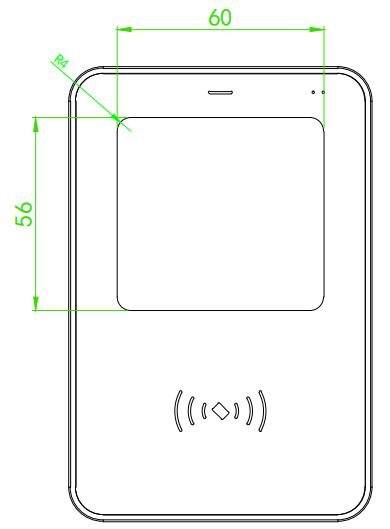

Overview: output interface. Dimension: back, side, front views.

General: Wiegand, Ethernet, relay; red/green/blue/white LED, buzzer; 0.3MP CMOS; 640×480; Windows; wall mount; 132×88×21mm; window 60×56mm; PC+ABS+tempered glass. Reading: QR, PDF417, CODE, ISBN, ITF, EAN13, DATABAR, Aztec etc.; screen/paper; depth 15.9–75.68mm (15mil); ≥7mil; 100ms avg; tilt ±59.5°/rotate ±360°/skew ±63.5°; FOV H72.4°/V54.2°/D84.8°. RFID: ISO 14443A/B, ID, UID/M1; 13.56MHz; <5cm. Electrical: DC 12–24V; 100mA (12V typ.); 1200mW; relay DC30V/1A. Environment: ESD ±8kV air/±4kV contact; -20 to 70°C; 0–80000Lux.

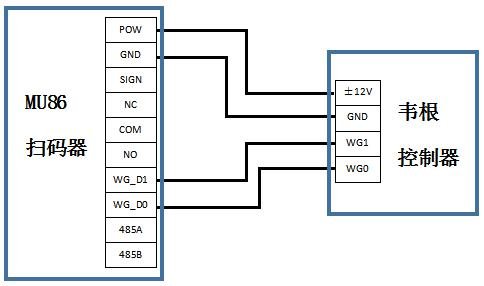

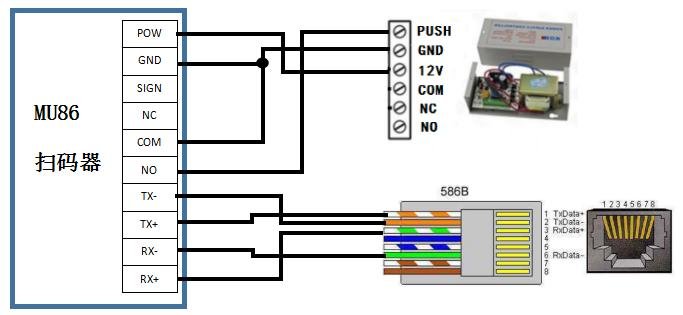

485/Wiegand: POW/GND/SIGN/NC/COM/NO/WG_D1/WG_D0/485A/485B. Ethernet: direct 4-wire 568B (TX-/TX+/RX-/RX+) plus NC/COM/NO; see diagram.

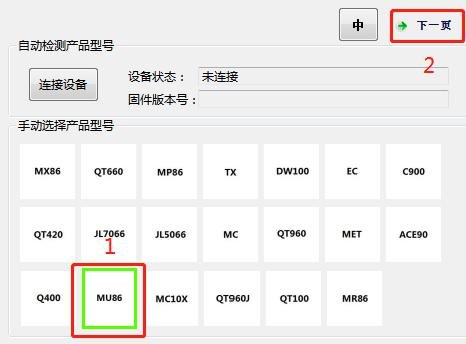

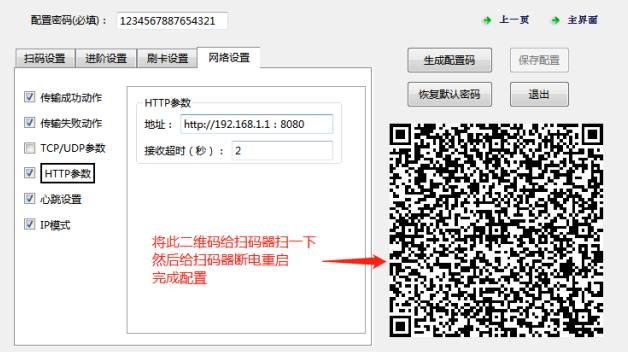

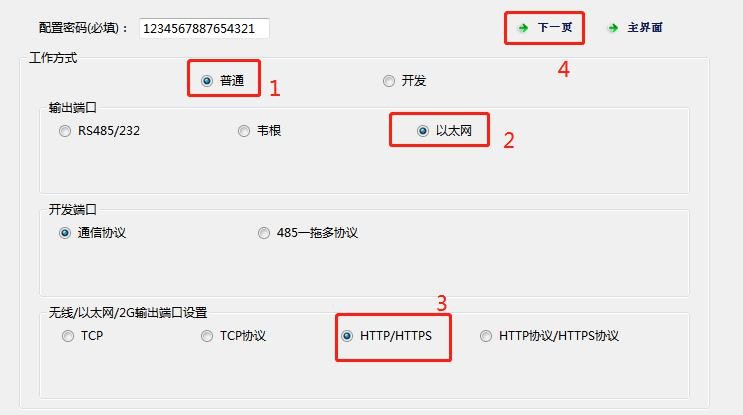

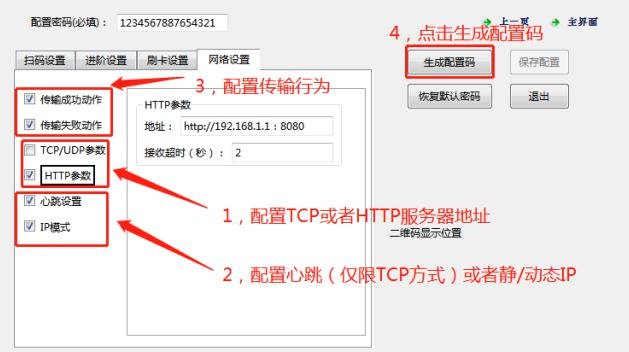

Use the configuration tool; steps: select device → output → server address & behavior → scan config code.

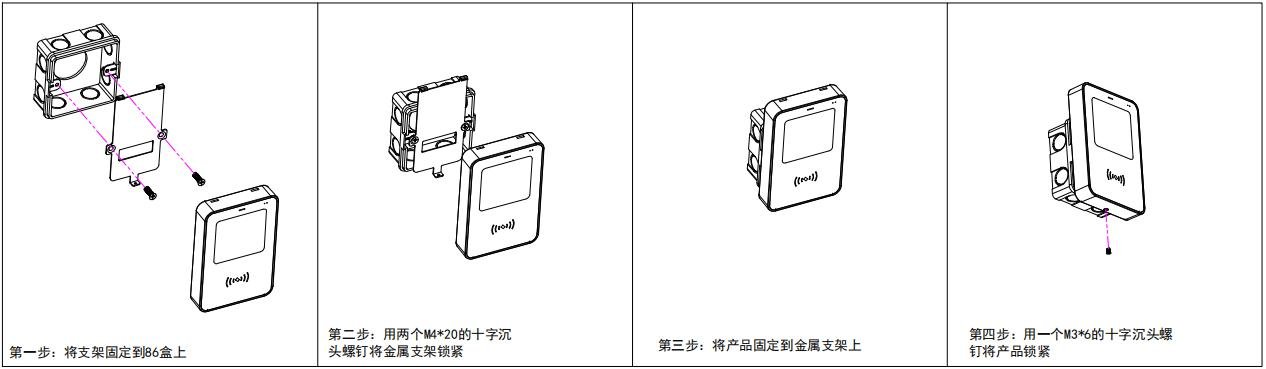

Avoid strong light; tempered glass; keep metal 10cm from RFID antenna.

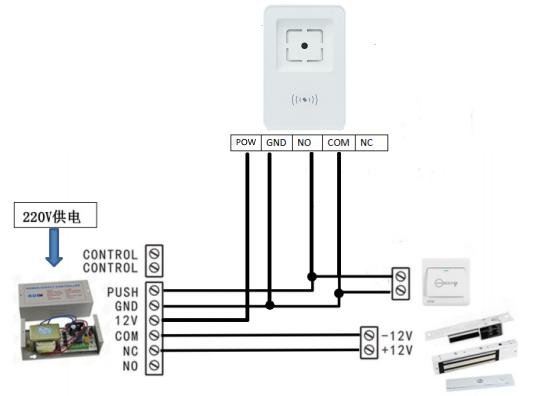

For Ethernet MU86: scan → upload to server → permission check → server returns value → relay opens door.

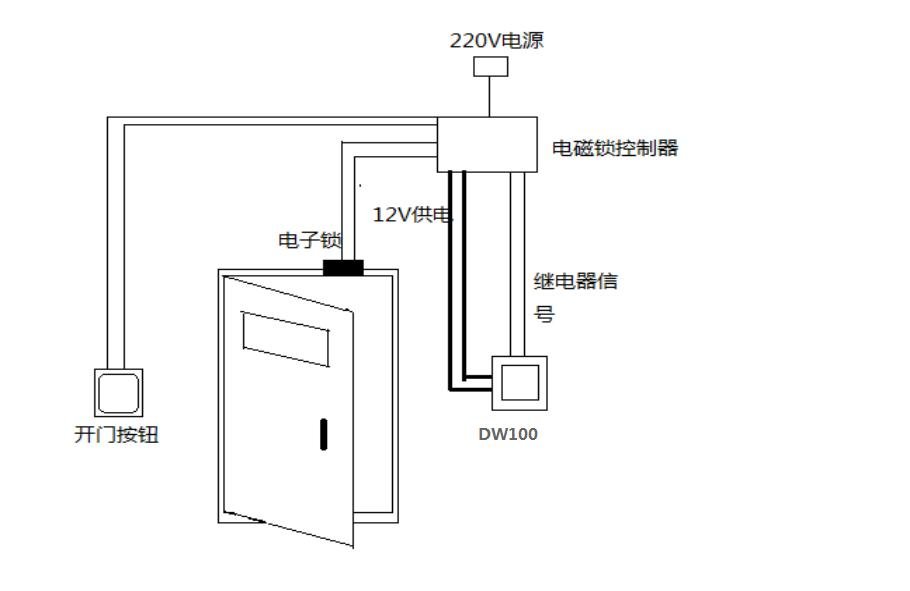

1, 12–24V power. 2, No disassembly. 3, Ethernet needs good network. 4, Avoid strong light; clean window; metal disturbs RFID. 5, Firm, insulated wiring. 6, Output is a switch signal; wire as NO/NC.
