MP86 扫码

Thank you for using the MP86 scanner. Reading this document carefully will help you understand the device functions and features, and quickly master its use and installation.

Product Introduction The MP86 is a scanner developed for access control, IP66 rated, with Wiegand and 485 outputs (direct to traditional controllers) and Ethernet output with a built-in relay to control doors directly, freeing you from bulky controllers.

Product Features 1, Scan + card combined. 2, Fast and accurate, up to 0.1s. 3, Easy configuration. 4, Built-in relay for direct access-system connection.

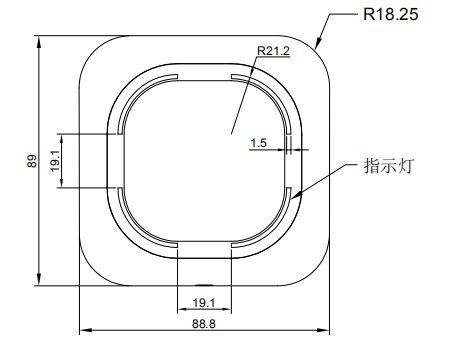

Overview: scan/card LED, scan/card area. Dimension: front, side, side views.

General: Wiegand, Ethernet (built-in relay); buzzer; red/green/blue LED; 0.3MP CMOS; 640×480; Windows; wall mount; 88.8×89×42.95mm; window 34.5×34.5mm (R12); ABS+tempered glass. Reading: QR, PDF417, CODE, ISBN, ITF, EAN, AZTEC etc.; screen; depth 5–55mm (15mil); ≥5mil; 100ms avg; FOV H73°/V55°. RFID: physical no., ISO 14443A/B, ID, NFC, Mifare series; 13.56MHz; <5cm. Electrical: DC 9–15V; 120mA (12V typ.); 1440mW; relay DC30V/1A. Environment: ESD EN61000-4-2; -20 to 70°C; IP66; 0–80000Lux.

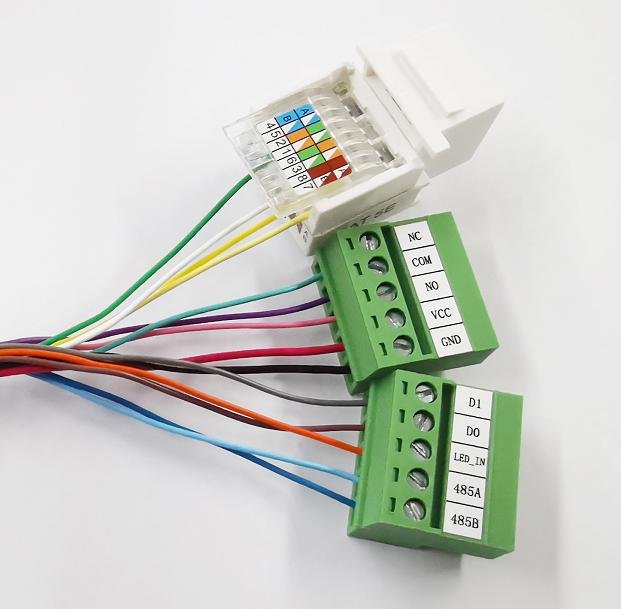

Lead colors map to VCC/GND/NO/COM/NC and Wiegand D1/D0/485A/485B per the wiring diagram; network uses 568B.

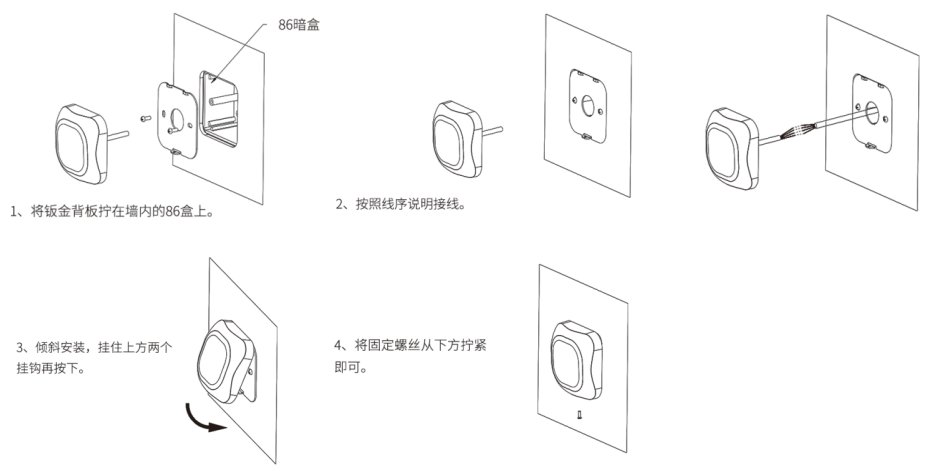

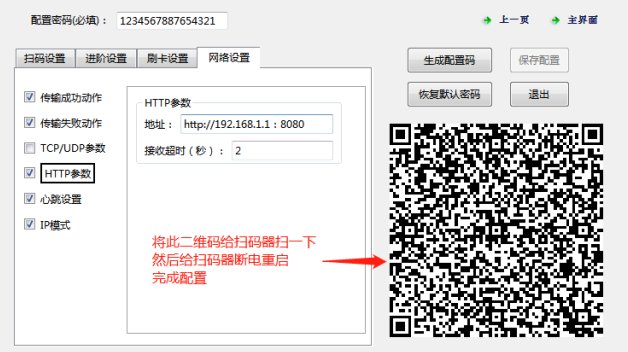

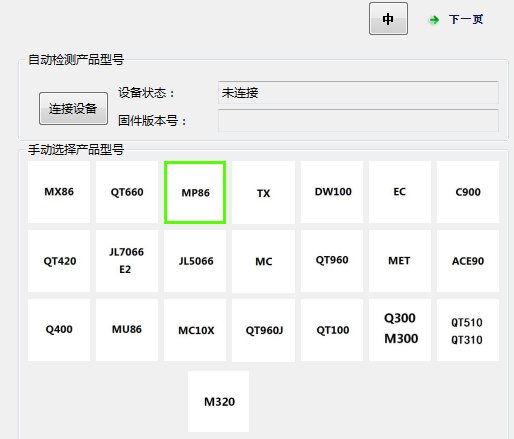

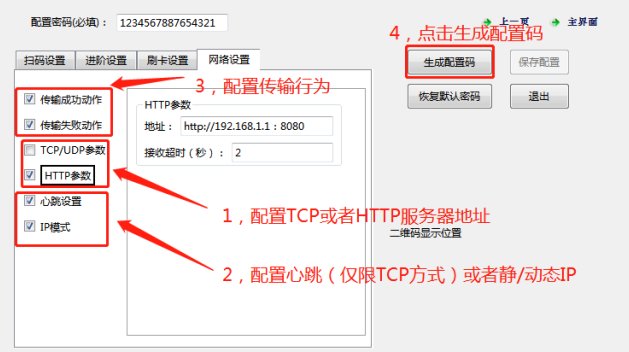

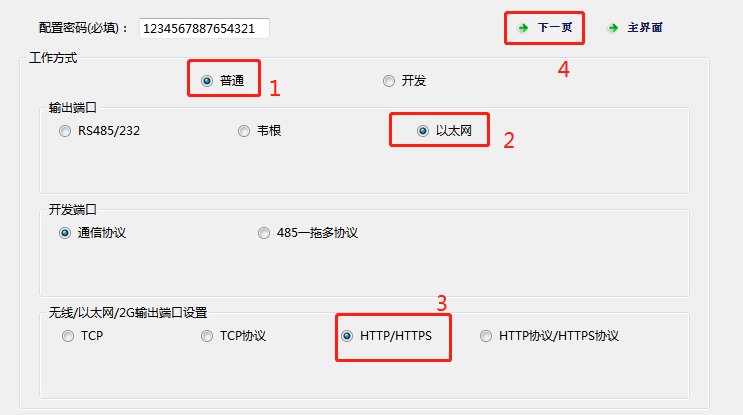

Use the config tool; example Ethernet: select device → output → server address & transfer behavior → scan config code.

Avoid strong light on the window; tempered glass; keep metal 10cm from RFID antenna.

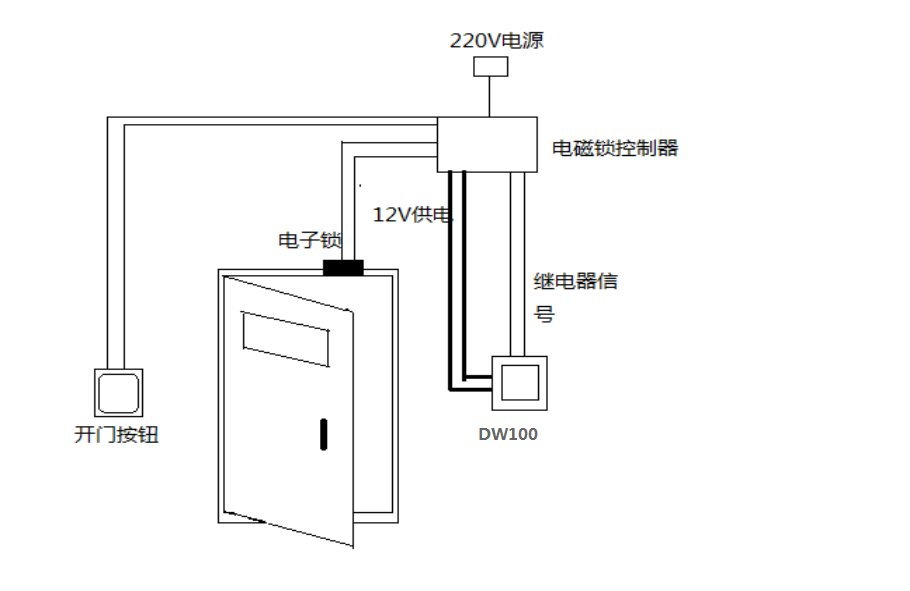

For Ethernet-output MP86: scanner scans → uploads to server → server decides permission → returns value → relay opens door.

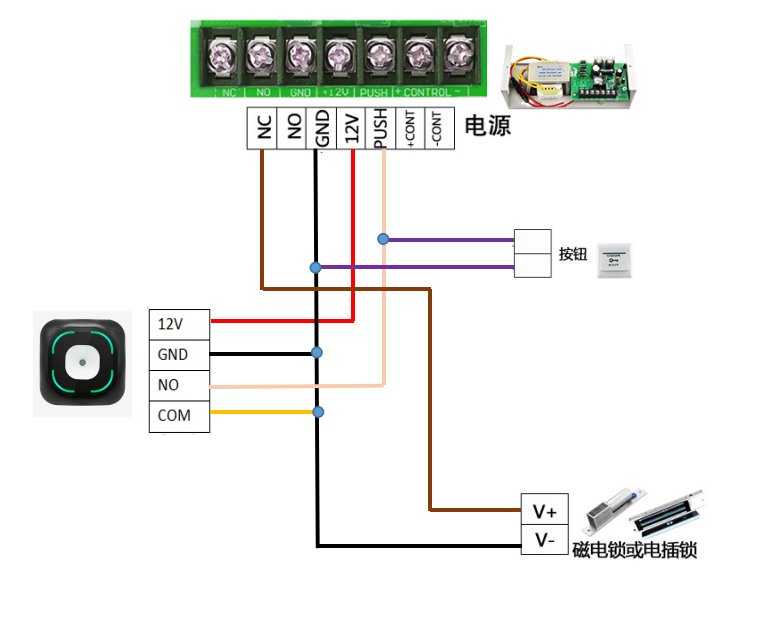

1, 9–15V power. 2, No disassembly. 3, Ethernet models need good network. 4, Avoid strong light; clean window; metal disturbs RFID. 5, Firm, insulated wiring. 6, Output is a switch signal; wire as NO/NC into the existing system.
