Preface
Thank you for using the M350 scanner. Reading this document carefully will help you understand the device functions and features, and quickly master its use and installation.
Product Introduction The M350 is a scanner developed for access-control scanning, with TTL, Wiegand, RS485, RS232 and Ethernet outputs and a built-in relay, suitable for turnstiles and access control.
Product Features 1, Scan + card combined. 2, Fast and accurate, up to 0.1s. 3, Easy configuration.
Product Appearance

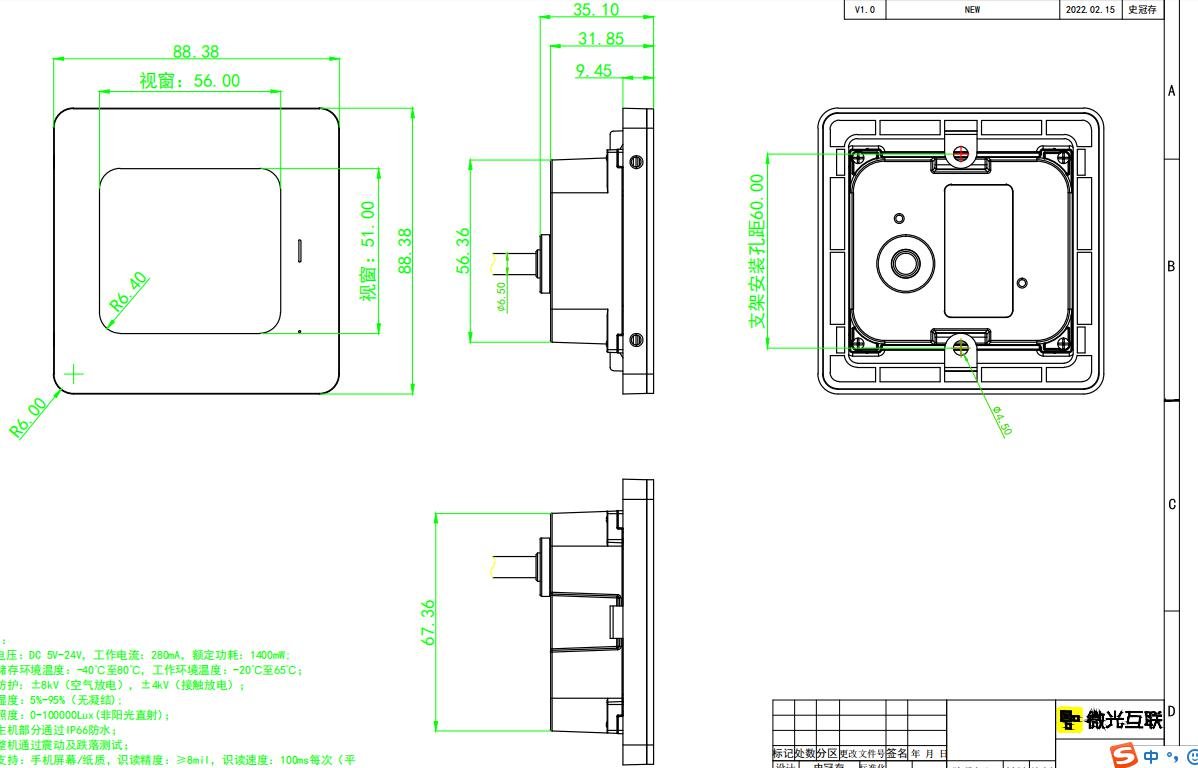

Overview: LED, fill light, scan/card area. Dimension drawing.
Specifications
General: RS485/RS232/TTL/Wiegand/Ethernet; red/green/white LED, buzzer; 0.3MP CMOS; 640×480; embedded; 88.38×88.38×35.10mm; window 56×51mm. Reading: QR, PDF417, CODE, ISBN, ITF, EAN, DATABAR, Aztec etc.; screen/paper; depth 0–62.4mm (15mil); ≥8mil; 100ms avg; Ethernet version tilt ±62.3°/rotate ±360°/skew ±65.2°, FOV 86.2°; 232/485/Wiegand/TTL version tilt ±52.6°/rotate ±360°/skew ±48.6°, FOV 73.5°. RFID: ISO 14443A/B, ID, UID/M1; 13.56MHz; <5cm. Electrical: 232/485/Wiegand/TTL DC 5–15V, 156.9mA, 784.5mW; Ethernet DC 12–24V, 92mA, 1104mW. Environment: ESD ±8kV air/±4kV contact; -20 to 70°C; 0–80000Lux.
Interface Definition

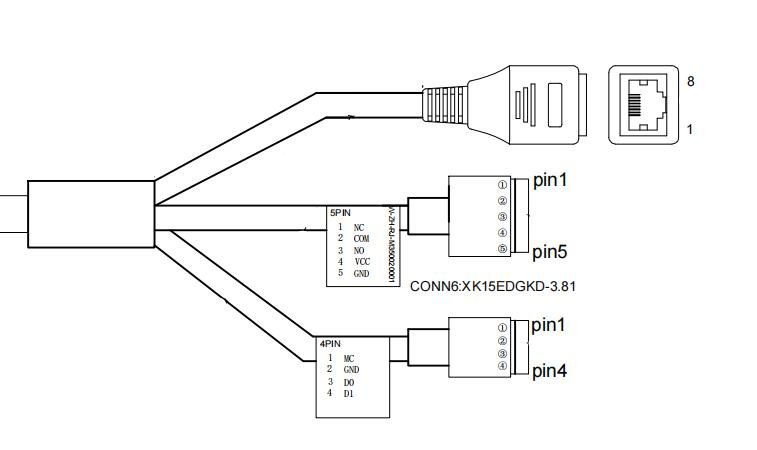

232/485 version: 1 VCC, 2 GND, 3 232RX/485A, 4 232TX/485B. Wiegand&TTL version: 4 VCC, 3 GND, 2 TTLTX/D1, 1 TTLRX/D0. Single-Ethernet: 1 COM, 2 NO, 3 VCC, 4 GND, 5 TX+, 6 TX-, 7 RX+, 8 RX- (568B). Ethernet+Wiegand: 5-pin relay (NC/COM/NO/VCC/GND) + 4-pin (MC/D0/D1/GND).
Device Configuration

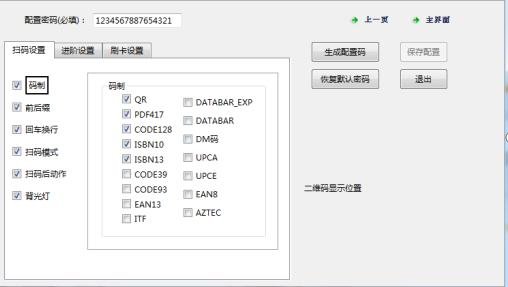

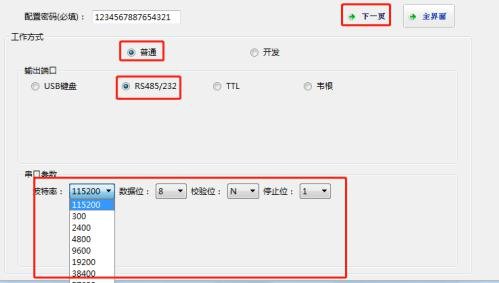

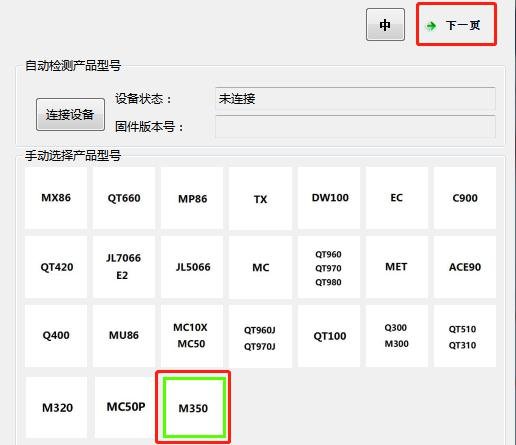

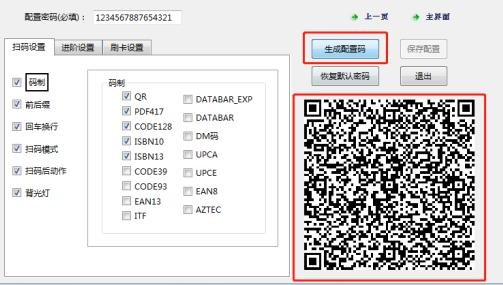

Use the configuration tool; select M350; output/serial params; options; generate config code; scan; power-cycle.

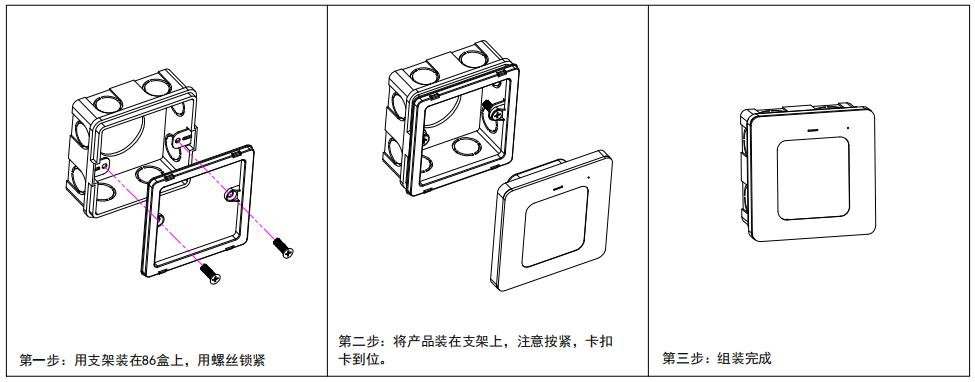

Installation
Avoid strong light; tempered glass window; keep metal 10cm from RFID antenna.
Precautions
1, 12–24V power. 2, No disassembly. 3, Avoid strong light; clean window; metal disturbs NFC. 4, Firm, insulated wiring.
Contact
Video Tutorials
M350 产品演示
Watch videoFAQ
How can I get the latest firmware for this product?
Firmware and upgrade packages require submitting your company information for approval; once approved, a download link will be sent. You can also upgrade online from the device backend.
The manual does not match the actual device?
Always refer to the device nameplate label and the latest version of the manual. If you have questions, contact Koodle technical support for assistance.
